05180960000 | SES-Sterling
Order No.: 05L9840
EAN: 3597470409565
MPN:
05180960000
DC 125
Unit Price (€ / pc.)
2,523.99 € *
Standard delivery time from the manufacturer is: 10 Weeks

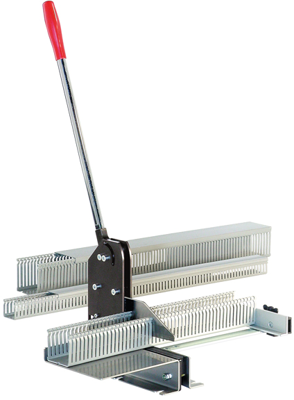

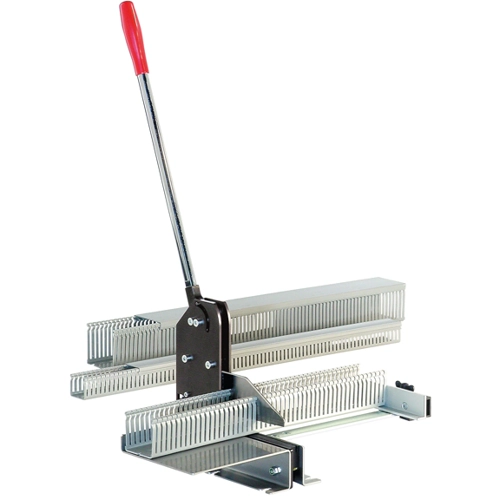

Wiring duct cutter, 05180960000, SES-Sterling
DC 125 cutter cuts trunking at true angles and avoids burring and expensive redressing. Due to a cam mechanism the DC 125 cuts with little effort. The 1 m long length guide and stop allows cutting of high precision. This cutter must be bench mounted. The blade in tungsten steel provides a cutting width of up to 125 mm. The blade is supplied with an integrated guard giving total security.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | wiring duct cutter | |
| Version | cutting width 125 mm | |
| Length | 1290 mm | |
| Width | 290 mm | |
| Height | 760 mm | |
| Weight | 10.5 kg |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
