HYB60A12 | SEPA

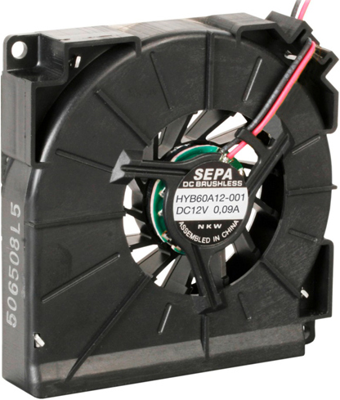

DC radial fan, 12 V, 60 x 60 x 12 mm, 7.9 m³/h, 34 dB, ball bearing, SEPA HYB60A12
Unit Price (€ / pc.)
17.5287 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.53 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5287 €
10 pcs.
16.3387 €
50 pcs.
15.3034 €
100 pcs.
14.3871 €
*incl. VAT plus shipping costs
Subject to prior sale

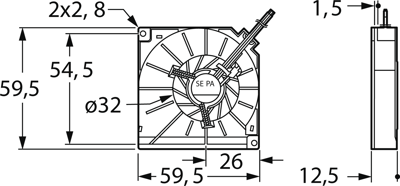

DC radial fan, 60 x 60 x 12.5 mm, type SEPA HYB60.
Powerful, reliable, vibration-free and impact-resistant, polarity reversal/blocking protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 60 mm | |
| speed | 3800 1/min | |
| Sound pressure level | 34 db | |
| Type of bearing | ball bearing | |
| Width | 60 mm | |
| Depth | 12 mm | |
| Rated voltage | 12 V | |
| Volume flow | 7.9 m³/h |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145935 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
