HYB60A05A | SEPA
DC radial fan, 5 V, 60 x 60 x 12 mm, 7.8 m³/h, 31 dB, ball bearing, SEPA HYB60A05A
Unit Price (€ / pc.)
17.7429 € *
Available: 10 pcs.
Total Price:
17.74 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7429 €
10 pcs.
16.5410 €
50 pcs.
15.4938 €
100 pcs.
14.5656 €
*incl. VAT plus shipping costs
Subject to prior sale

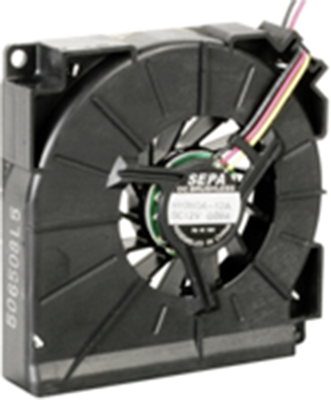

DC radial fan, 60 x 60 x 12.5 mm, type SEPA HYB60.
Powerful, reliable, vibration-free and impact-resistant, polarity reversal/blocking protection
With speedometer output.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 12 mm | |
| Sound pressure level | 31 db | |
| Height | 60 mm | |
| Type of bearing | ball bearing | |
| Width | 60 mm | |
| Volume flow | 7.8 m³/h | |
| Rated voltage | 5 V | |
| speed | 3700 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145935 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
