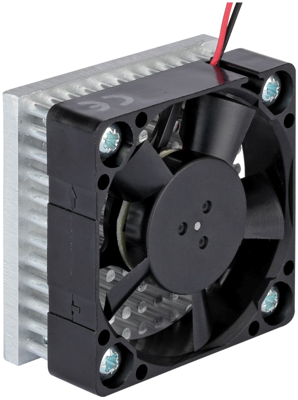

Axial fan, HX40J12-014, Sepa
This high-tech miniature fan is suitable for industrial or automotive use and has a remarkable air flow performance despite its small dimensions. Thanks to the extremely low power input, this fan is highly suitable for battery-operated devices.
It is permanently protected electrically against reverse polarity, blocking and thermal overloading. Due to the low rotor weight and precision balancing, it is virtually vibration-free. It is also insensitive to shock.
Features
- Extremely robust
- Vibration-free
- Shock resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Height | 20.5 mm | |
| Type of bearing | Magfix sleeve bearing | |
| Rated voltage | 12 V | |
| Depth | 40 mm | |
| min. operating temperature | -10 °C | |
| Width | 40 mm | |
| Sound pressure level | 22 db |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145915 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
