UF60D23BWH | SEPA

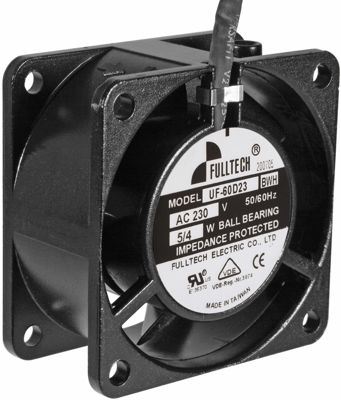

AC axial fan, 230 V, 60 x 60 x 30 mm, 14 m³/h, 27 dB, ball bearing, SEPA UF60D23BWH
Order No.: 82B340
EAN: 4099889478815
MPN:
UF60D23BWH
Unit Price (€ / pc.)
20.0991 € *
Available: 13 pcs.
Total Price:
20.10 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0991 €
10 pcs.
18.7425 €
25 pcs.
17.5525 €
50 pcs.
16.5053 €
*incl. VAT plus shipping costs
Subject to prior sale
AC Axial fan, UF60D23BWH, SEPA
The UF60D23BWH is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- Extremely robust
- High resistance to shock and vibration
- Maximum reliability thanks to 100% burn-in
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 30 mm | |
| Volume flow | 14 m³/h | |
| Sound pressure level | 27 db | |
| speed | 2550 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 5 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85340090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
