MFB50E05A | SEPA

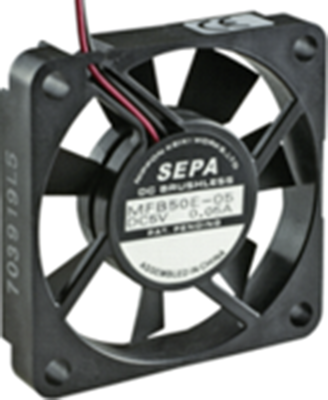

DC axial fan, 5 V, 50 x 50 x 10 mm, 10.1 m³/h, 16 dB, ball bearing, SEPA MFB50E05A
Unit Price (€ / pc.)
21.0392 € *
Available: 29 pcs.
Total Price:
21.04 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0392 €
10 pcs.
18.5045 €
50 pcs.
17.2431 €
150 pcs.
16.4934 €
500 pcs.
15.6485 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, MFB50E05A, SEPA
The MFB50E05A is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- High-capacity standard fan
- High resistance to shock and vibration
- Integrated polarity reversal and anti-blocking protection
- Maximum reliability thanks to 100% burn-in
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 10 mm | |
| Sound pressure level | 16 db | |
| Height | 50 mm | |
| Type of bearing | ball bearing | |
| Width | 50 mm | |
| Volume flow | 10.1 m³/h | |
| Rated voltage | 5 V | |
| Version | DC axial fan | |
| speed | 3500 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
