MF17A05 | SEPA
DC axial fan, 5 V, 17 x 17 x 8 mm, 0.9 m³/h, 6 dB, slide bearing, SEPA MF17A05
Unit Price (€ / pc.)
13.3875 € *
Available: 10 pcs.
Total Price:
13.39 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3875 €
10 pcs.
12.4831 €
50 pcs.
11.6977 €
100 pcs.
10.9956 €
*incl. VAT plus shipping costs
Subject to prior sale

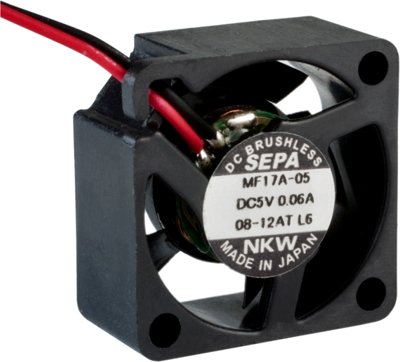

DC Axial fan, MF17A05, SEPA
The MF17A05 is a high-tech miniature fan that is suitable for industrial or automotive use and has exceptional airflow performance despite its low height of only 6.5 mm.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- High resistance to shock and vibration
- Maximum reliability thanks to 100% burn-in
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 5 V | |
| Width | 17 mm | |
| Height | 17 mm | |
| Depth | 8 mm | |
| Volume flow | 0.9 m³/h | |
| Sound pressure level | 6 db | |
| speed | 10500 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 350 mW |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
