HFB44X05A | SEPA
DC axial fan, 5 V, 44 x 44 x 6 mm, 3 m³/h, 28 dB, ball bearing, SEPA HFB44X05A
Unit Price (€ / pc.)
13.9349 € *
Available: 20 pcs.
Total Price:
13.93 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9349 €
10 pcs.
12.9948 €
50 pcs.
12.1618 €
100 pcs.
11.4359 €
*incl. VAT plus shipping costs
Subject to prior sale

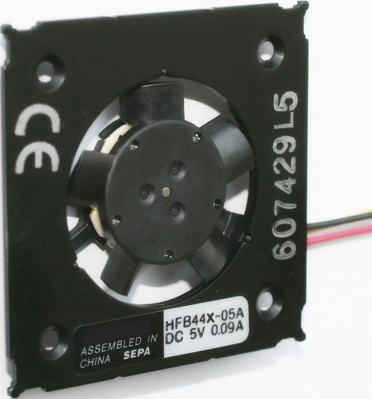

DC Axial fan, HFB44X05A, SEPA
The HFB44X05A is a high-tech miniature fan that is suitable for industrial or automotive use and has exceptional airflow performance despite its low height of only 6.5 mm.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- High resistance to shock and vibration
- Extremely robust
- Maximum reliability thanks to 100% burn-in

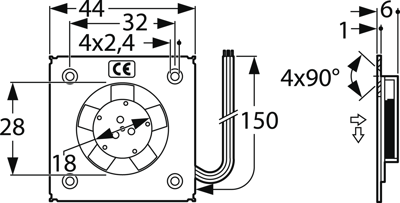

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 6 mm | |
| Width | 44 mm | |
| Volume flow | 3 m³/h | |
| Rated voltage | 5 V | |
| Type of bearing | ball bearing | |
| Height | 44 mm | |
| speed | 8000 1/min | |
| Sound pressure level | 28 db | |
| Version | DC axial fan |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
