GF1T-T3-B-BNC | Senseca
Piercing probe, -70 to 250 °C, Pt1000 sensor, GF1T-T3-B-BNC
Order No.: 19K9869
EAN: 4058175095495
MPN:
GF1T-T3-B-BNC
609549
Unit Price (€ / pc.)
42.959 € *
Standard delivery time from the manufacturer is: On Request
Insertion sensor, GF1T-T3-B-BNC, Greisinger
Pt1000 handheld sensor, -70 ... +250 °C, Pt1000 Kl. B

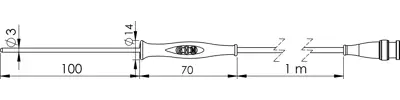

Immersion tip Ø 3 mm made of V4A tube, black silicone handle -50 ... +250 °C, 1 m silicone cable -50 ... +230 °C continuous / +250 °C 2 h, probe tip and silicone handle IP67, BNC connector
Features
- Lightweight, handy handle with optimized ergonomics and flexible cable
- Water tightness: can be completely submerged without hesitation
- Short-term temperature resistance up to 250 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 250 °C | |
| Technology | Pt1000 sensor | |
| min. operating temperature | -70 °C | |
| Product type | piercing probe |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90259000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
