MK505K25BC | SEIKA Electric

MKP film capacitor, 5 µF, ±10 %, 250 V (AC), PP, 32.5 mm, MK505K25BC

Order No.: 37D1378
EAN: 4099879814920
MPN:
MK505K25BC
Series: MKXXX

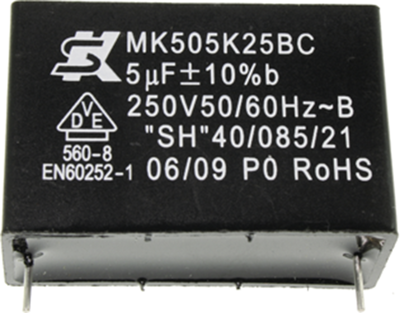

MK505K25BC SEIKA Electric Film Capacitors Image 1
MK505K25BC SEIKA Electric Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
6.2356 € *
Next delivery: 273 pcs. on 2025-10-16
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
4.4506 €
25 pcs.
3.7961 €
50 pcs.
3.3082 €
100 pcs.
2.9988 €
*incl. VAT plus shipping costs
Subject to prior sale

Film capacitor (MKP) for AC applications, type SEIKA MK.

Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant

Rated voltage 250 VAC.

Technical specifications
Filter Property Value

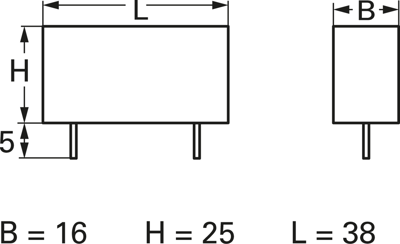

Width 16 mm
Grid 32.5 mm
Capacity 5 µF
min. operating temperature -40 °C
Rated voltage (AC) 250 V
Number of pins 2
Tolerance ±10 %
Dielectric material PP
Design radial
Length 38 mm
Height 25 mm
max. operating temperature 85 °C
Logistics
Property Value
Country of origin TW
Customs tariff number 85322500
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
