MK474K40BC | SEIKA Electric
MKP film capacitor, 470 nF, ±10 %, 400 V (AC), PP, 27.5 mm, MK474K40BC
Unit Price (€ / pc.)
3.0583 € *
Available: 166 pcs.
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
10 pcs.
2.5466 €
100 pcs.
2.1896 €
250 pcs.
1.9873 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

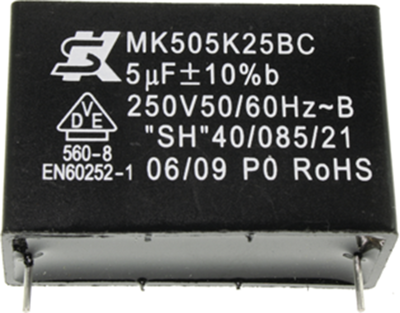

Film capacitor (MKP) for AC applications, type SEIKA MK.
Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant
Rated voltage 400 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (AC) | 400 V | |
| Capacity | 470 nF | |
| max. operating temperature | 85 °C | |

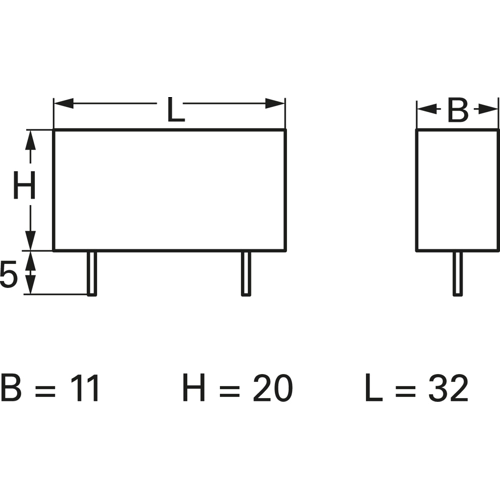

| Length | 32 mm | |
| min. operating temperature | -40 °C | |
| Height | 20 mm | |
| Width | 11 mm | |
| Grid | 27.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
