MK474K25BC | SEIKA Electric
MKP film capacitor, 470 nF, ±10 %, 250 V (AC), PP, 22.5 mm, MK474K25BC
Unit Price (€ / pc.)
2.8322 € *
Available: 290 pcs.
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8322 €
10 pcs.
2.3086 €
100 pcs.
1.9516 €
250 pcs.
1.6779 €
1000 pcs.
1.4637 €
*incl. VAT plus shipping costs
Subject to prior sale

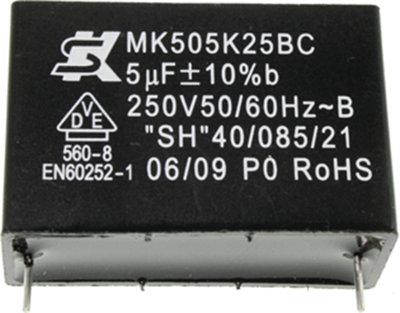

Film capacitor (MKP) for AC applications, type SEIKA MK.
Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant
Rated voltage 250 VAC.

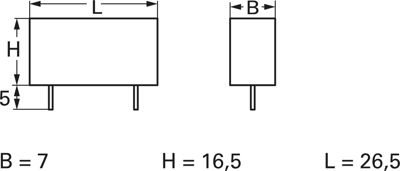

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Height | 16.5 mm | |
| Number of pins | 2 | |
| Capacity | 470 nF | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Dielectric material | PP | |
| Tolerance | ±10 % | |
| Length | 26.5 mm | |
| Width | 7 mm | |
| max. operating temperature | 85 °C | |
| Grid | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
