MK334K40BC | SEIKA Electric
MKP film capacitor, 330 nF, ±10 %, 400 V (AC), PP, 22.5 mm, MK334K40BC
Unit Price (€ / pc.)
2.9988 € *
Available: 187 pcs.
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.4395 €
100 pcs.
2.0587 €
250 pcs.
1.7612 €
1000 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor (MKP) for AC applications, type SEIKA MK.
Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant
Rated voltage 400 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 400 V | |

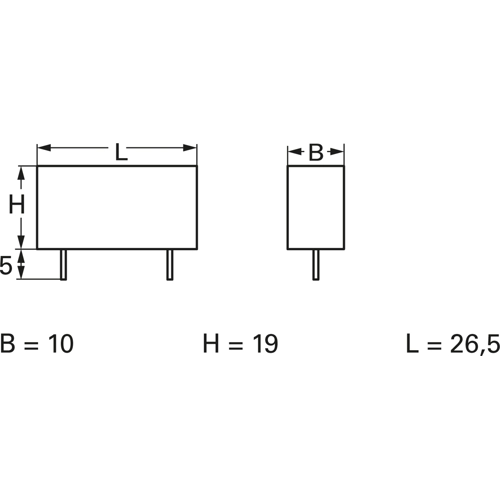

| Height | 19 mm | |
| Number of pins | 2 | |
| Capacity | 330 nF | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Dielectric material | PP | |
| Tolerance | ±10 % | |
| Length | 26.5 mm | |
| Width | 10 mm | |
| max. operating temperature | 85 °C | |
| Grid | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
