MK205K25BC | SEIKA Electric
MKP film capacitor, 2 µF, ±10 %, 250 V (AC), PP, 27.5 mm, MK205K25BC
Unit Price (€ / pc.)
3.1416 € *
Available: 3 pcs.
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1416 €
10 pcs.
2.7608 €
100 pcs.
2.4276 €
250 pcs.
2.3443 €
1000 pcs.
2.1896 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor (MKP) for AC applications, type SEIKA MK.
Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant
Rated voltage 250 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |

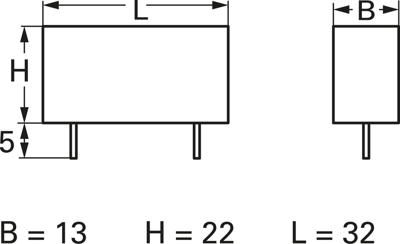

| Height | 22 mm | |
| Number of pins | 2 | |
| Capacity | 2 µF | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Dielectric material | PP | |
| Tolerance | ±10 % | |
| Length | 32 mm | |
| Width | 13 mm | |
| max. operating temperature | 85 °C | |
| Grid | 27.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
