MK105K25BC | SEIKA Electric
MKP film capacitor, 1 µF, ±10 %, 250 V (AC), PP, 22.5 mm, MK105K25BC
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 30 Weeks

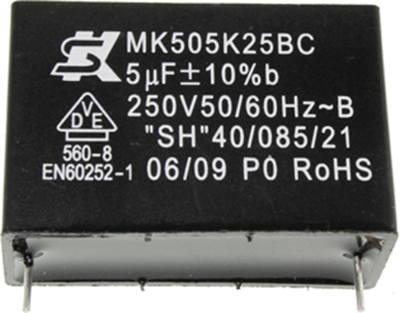

Film capacitor (MKP) for AC applications, type SEIKA MK.
Self-sealing. Rectangular plastic can with epoxy resin molding, flame retardant
Rated voltage 250 VAC.

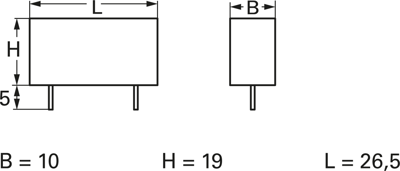

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 10 mm | |
| Number of pins | 2 | |
| Tolerance | ±10 % | |
| Capacity | 1 µF | |
| Grid | 22.5 mm | |
| Rated voltage (AC) | 250 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Height | 19 mm | |
| Length | 26.5 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
