SEFRAM9831B | SEFRAM
Handheld Thermography Camera (120 x 90)(240 x 180 AI mode)
Handhled Thermal Camera, SEFRAM9831B, Sefram

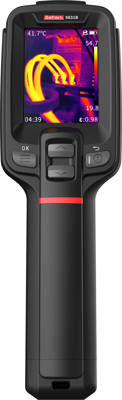

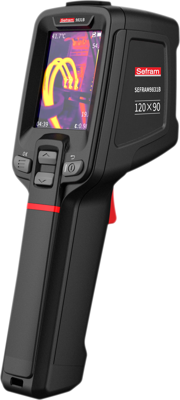

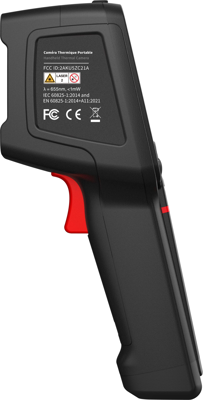

The SEFRAM9831B is a compact and robust handheld thermal camera, specifically designed for accurate temperature measurement in electrical and industrial environments. It features a high-performance thermal sensor with a resolution of 120 × 90 pixels (10 800 pixels total), enhanced by an artificial intelligence-based image optimization that delivers an effective resolution of 240 × 180 pixels (43 200 pixels) for greater detail and precision. In addition to thermal imaging, the SEFRAM9831B includes a built-in camera, enabling picture-in-picture (PIP) mode for enhanced visual context and more effective diagnostics.
The SEFRAM9831B thermal camera helps technicians make informed decisions by accurately measuring temperature and rapidly detecting hot spots and signs of overheating. Designed for versatility, it is ideal for a wide range of applications, including industrial maintenance, electrical inspections, building diagnostics, and HVAC system analysis.
Features
- Automatic search and measurement of coldest and hottest points
- Real image
- 2.4-inch LCD screen
- Built-in rechargeable Li-ion battery
- Image recording
- Video recording
- 16 GB built-in memory
- Integrated laser pointer
| Filter | Property | Value |
|---|---|---|
| Field of View | 50° x 38° | |
| min. operating temperature | -20 °C | |
| Resolution | 120 x 90 pixel | |
| max. operating temperature | 550 °C | |
| Minimum Focus Distance | 0.1 m |
| Property | Value |
|---|---|
| Customs tariff number | 90275000 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
