SEFRAM7202 | SEFRAM
TRMS digital multimeter SEFRAM7202, 600 VDC, 600 VAC, 50 nF to 1000 µF, CAT II 600 V
Order No.: 35K0359
EAN: 3701416000208
MPN:
SEFRAM7202
Unit Price (€ / pc.)
124.95 € *
Standard delivery time from the manufacturer is: 2 Weeks

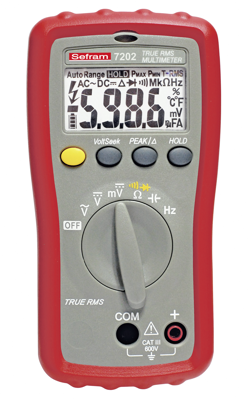

Handheld digital multimeter, SEFRAM7202, SEFRAM
With the SEFRAM7202 all types of signals can be measured with excellent accuracy. The new rubber holster equipped with a magnet will not only protect your DMM against shocks, but will allow you to work with both hands free. This feature is very usefull when working in an electrical switch board.
Features
- Frequency measurement
- Capacitance measurement
- Continuity test with buzzer
- Non contact voltage detector
- Peak-Hold and relative mode
- Protective holster with magnet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC multimeter | |
| TRMS possible | Yes | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Capacity range | 50 nF to 1000 µF | |
| max. resistance range | 40 MΩ | |
| Surge voltage category | CAT II 600 V | |
| Display Digits | 6000 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
