1301.9324.25 | SCHURTER

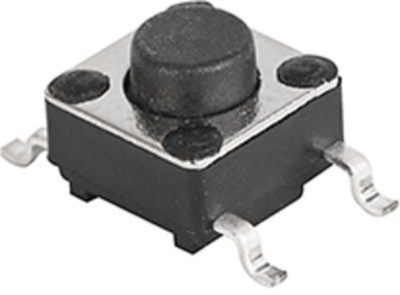

Name: Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black, L 3.1 mm), 1.6 N, SMD, 1301.9324.25
Brand: SCHURTER
SKU: 59P4524
Availability: InStock

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black, L 3.1 mm), 1.6 N, SMD, 1301.9324.25

Order No.: 59P4524

EAN: 4099889210767

MPN:

1301.9324.25

Series: LSG

Image may differ

Key Specification:

Latching switching function 1 Form A (N/O)

Breaking capacity 50 mA/12 VDC

illuminated No

Actuator colour black

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4522 € *

Standard delivery time from the manufacturer is: 14 Weeks

Total Price:

1,356.60 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Print and SMD switch, 1301.9324.25, SCHURTER

A print and SMD switch with a reliable tactile feedback on input, simple assembly and long lifetime.

Technical specifications

Filter	Property	Value
	Length	6.2 mm
	Contact material	silver-plated
	Connection	SMD
	actuator length	3.1 mm
	Breaking capacity	50 mA/12 VDC
	illuminated	No
	Latching switching function	1 Form A (N/O)
	actuating force	1.6 N
	Width	6 mm
	Actuator colour	black
