1301.9316.24 | SCHURTER

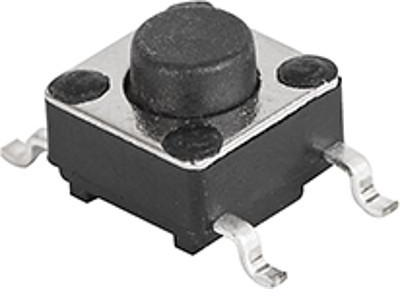

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black, L 7 mm), 1.6 N, SMD, 1301.9316.24
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.4641 €
50 pcs.
0.4165 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Print and SMD switch, 1301.9316.24, SCHURTER
A print and SMD switch with a reliable tactile feedback on input, simple assembly and long lifetime.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 6 mm | |
| actuating force | 1.6 N | |
| illuminated | No | |
| Latching switching function | 1 Form A (N/O) | |
| Width | 6 mm | |
| Breaking capacity | 50 mA/12 VDC | |
| Actuator colour | black | |
| Connection | SMD | |
| actuator length | 7 mm | |
| Contact material | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Reel with 750 pieces |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
