1301.9306 | SCHURTER

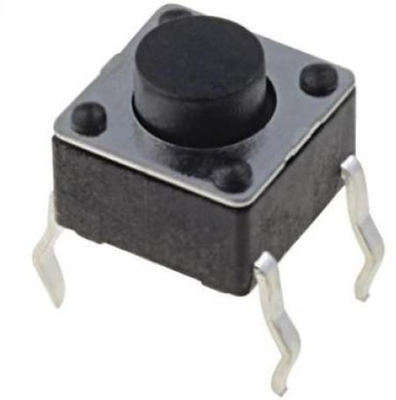

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black, L 9.5 mm), 1.6 N, THT, 1301.9306
Unit Price (€ / pc.)
0.3094 € *
Available: 2,454 pcs.
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3094 €
10 pcs.
0.2796 €
100 pcs.
0.2582 €
2000 pcs.
0.2380 €
4000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale
Momentary action switches, series LSH/LPH/LPS/LPV, type Schurter 1301.
1/4 inch short-stroke switch with safe tactile feedback; Actuating force: 1.6 (±0.5) N. Actuating travel: 0.25 (+0.2/–0.1) mm. Switching voltage: 12 VDC. Switching current: 50 mA. Contact resistance: max. 100 mohm. Useful life: min. 100000 switching cycles. Bounce time: typ. 0.1 ms. Ambient temperatures: –20 to +70 °C. Contacts: silver. Degree of protection: IP 40.
6.0 x 6.0 mm with PCB terminals, series LPH, type 1301.
Technical attributes (type, actuator dimensions (A), height (H)): 1301.9306, A 3.2, H 9.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | THT | |
| Width | 6 mm | |
| Actuator colour | black | |
| Latching switching function | 1 Form A (N/O) | |
| Length | 6 mm | |
| Contact material | silver-plated | |
| actuating force | 1.6 N | |
| illuminated | No | |
| Breaking capacity | 50 mA/12 VDC | |
| actuator length | 9.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
