1241.1110.7093 | SCHURTER

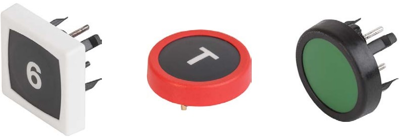

Short-stroke pushbutton, Form A (N/O), 125 mA/48 VDC, unlit , actuator (red, L 4 mm), 3 N, THT, 1241.1110.7093
Unit Price (€ / pc.)
3.6890 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6890 €
10 pcs.
3.3201 €
50 pcs.
3.0226 €
100 pcs.
2.7132 €
*incl. VAT plus shipping costs
Subject to prior sale
Membrane switch, 1241.1110.7093, SCHURTER
A membrane switch with a high-quality gold and silver contacts, extremely low design, ideal for applications with multiple key points and long lifetime.
Technical specifications
| Breaking capacity | 125 mA/48 VDC | |
| Actuator colour | red | |
| Height | 9 mm | |
| Length | 18 mm | |
| illuminated | No | |
| Connection | THT | |
| actuator length | 4 mm | |
| Latching switching function | Form A (N/O) | |
| Contact material | silver-plated | |
| actuating force | 3 N |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
