1241.1108.3058 | SCHURTER

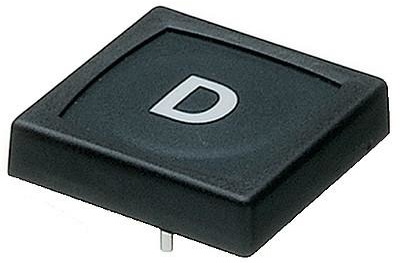

Short-stroke pushbutton, Form A (N/O), 125 mA/48 VDC, unlit , actuator (black), 3 N, THT, 1241.1108.3058
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
3.70 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7009 €
10 pcs.
3.3320 €
50 pcs.
3.0345 €
100 pcs.
2.7251 €
*incl. VAT plus shipping costs
Subject to prior sale
Membrane switch, 1241.1108.3058, SCHURTER
The 1241.1108.3058 membrane switch is a unique mechanical switch with tactile feedback, extremely low design, and a long lifetime. This product is ideal for applications with multiple key points.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | silver-plated | |
| Breaking capacity | 125 mA/48 VDC | |
| Latching switching function | Form A (N/O) | |
| Length | 18 mm | |
| actuating force | 3 N | |
| Connection | THT | |
| Width | 18 mm | |
| Height | 9 mm | |
| Actuator colour | black | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
