3-153-446 | SCHURTER
Capacitor 3-15Capacitor 3-446, SupercapSCPC, 5.50V 400mF
Unit Price (€ / pc.)
11.5192 € *
Standard delivery time from the manufacturer is: 10 Weeks

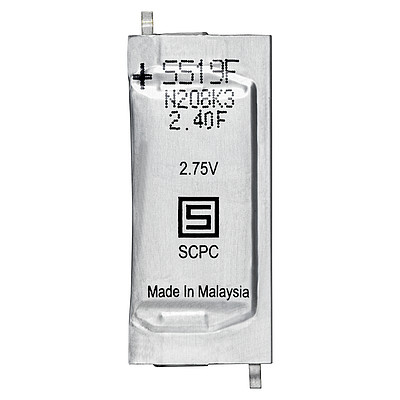

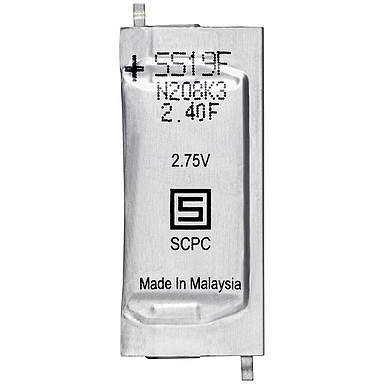

Prismatic Supercapacitor, 3-153-446, SCHURTER
Prismatic ultra-thin supercapacitor with a double-cell structure, featuring an ultra-compact design and high pulse power.
Features
- High temperature rating
- High power density
- Low ESR with high current handling
- Very low self discharge
Applications
- Sensors
- Small mobile devices
- Small power supplies
- Mobile energy harvesting
- Uninterruptible power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 18 mm | |
| Rated voltage (DC) | 5.5 V | |
| Length | 20 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Height | 3.5 mm | |
| Capacity | 400 mF | |
| ESR (Equivalent Series Resistance) | 130 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85322900 |
| Original Packaging | Tray with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
