3-153-437 | SCHURTER

Capacitor 3-15Capacitor 3-437, SupercapSCPC, 2.75V 800mF

Order No.: 10D431
MPN:
3-153-437
SCPC-2V75-804M-AS17-B0
Series: SCPC
3-153-437 SCHURTER Supercapacitors
Image may differ
Unit Price (€ / pc.)
9.282 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,856.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
9.282 €

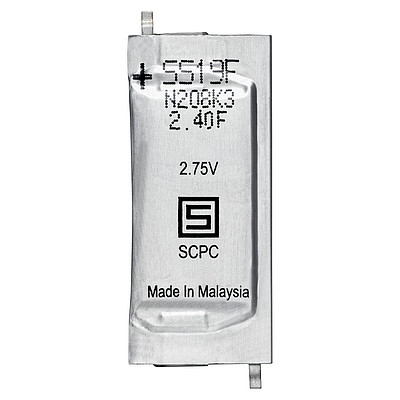

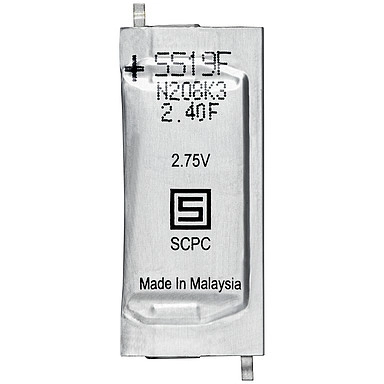

Prismatic Supercapacitor, 3-153-437, SCHURTER

Prismatic ultra-thin supercapacitor with a single-cell structure, featuring an ultra-compact design and high pulse power.

Features

  • High temperature rating
  • High power density
  • Low ESR with high current handling
  • Very low self discharge

Applications

  • Sensors
  • Small mobile devices
  • Small power supplies
  • Mobile energy harvesting
  • Uninterruptible power supply
Technical specifications
max. operating temperature 85 °C
Height 1.7 mm
Capacity 800 mF
Length 20 mm
Rated voltage (DC) 2.75 V
ESR (Equivalent Series Resistance) 65 mΩ
Width 18 mm
min. operating temperature -40 °C
Logistics
Customs tariff number 85322900
Country of origin MY
Original Packaging Tray with 200 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
