3-153-433 | SCHURTER

Capacitor 3-15Capacitor 3-433, SupercapSCPC, 2.75V 240mF

Order No.: 10D471
MPN:
3-153-433
SCPC-2V75-244M-AS12-B0
Series: SCPC
3-153-433 SCHURTER Supercapacitors
Image may differ
Unit Price (€ / pc.)
8.6394 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,727.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
8.6394 €

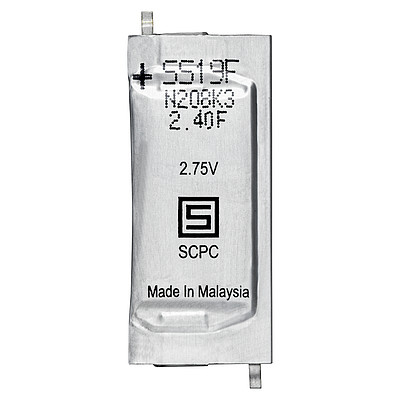

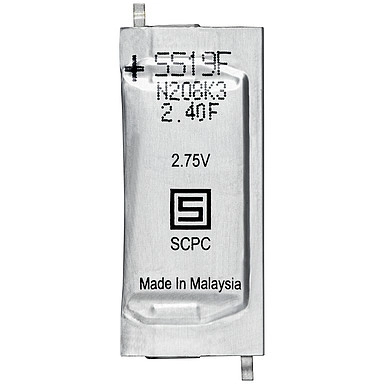

Prismatic Supercapacitor, 3-153-433, SCHURTER

Prismatic ultra-thin supercapacitor with a single-cell structure, featuring an ultra-compact design and high pulse power.

Features

  • High temperature rating
  • High power density
  • Low ESR with high current handling
  • Very low self discharge

Applications

  • Sensors
  • Small mobile devices
  • Small power supplies
  • Mobile energy harvesting
  • Uninterruptible power supply
Technical specifications
max. operating temperature 85 °C
Height 1.2 mm
Capacity 240 mF
Length 20 mm
Rated voltage (DC) 2.75 V
ESR (Equivalent Series Resistance) 60 mΩ
Width 18 mm
min. operating temperature -40 °C
Logistics
Customs tariff number 85322900
Country of origin MY
Original Packaging Tray with 200 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
