3-153-426 | SCHURTER

Capacitor 3-15Capacitor 3-426, SupercapSCPB, 5.00V 270mF

Order No.: 10D541
MPN:
3-153-426
SCPB-5V00-274M-SS21-G0
Series: SCPB
3-153-426 SCHURTER Supercapacitors
Image may differ
Unit Price (€ / pc.)
13.5898 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2,717.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
13.5898 €

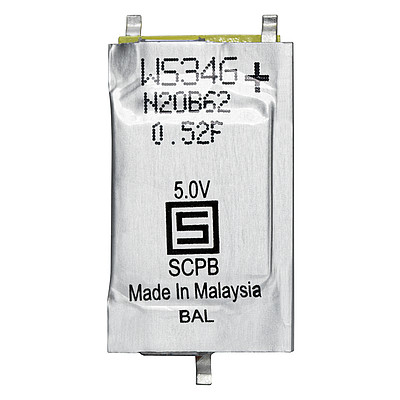

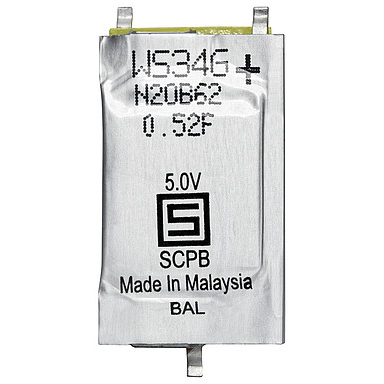

Prismatic Supercapacitor, 3-153-426, SCHURTER

Prismatic ultra-thin supercapacitor with a double-cell structure, featuring an ultra-compact design and high pulse power.

Features

  • High temperature rating
  • High power density
  • Low ESR with high current handling
  • Very low self discharge

Applications

  • Sensors
  • Small mobile devices
  • Small power supplies
  • Mobile energy harvesting
  • Uninterruptible power supply
Technical specifications
max. operating temperature 70 °C
Height 2.1 mm
Capacity 270 mF
Length 42 mm
Rated voltage (DC) 5 V
ESR (Equivalent Series Resistance) 35 mΩ
Width 17 mm
min. operating temperature -40 °C
Logistics
Customs tariff number 85322900
Country of origin MY
Original Packaging Tray with 200 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
