3-153-424 | SCHURTER
Capacitor 3-15Capacitor 3-424, SupercapSCPB, 5.00V 90mF
Unit Price (€ / pc.)
14.9821 € *
Available: 10 pcs.
Total Price:
14.98 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9821 €
10 pcs.
13.8635 €
50 pcs.
13.0781 €
100 pcs.
12.3403 €
200 pcs.
11.7572 €
*incl. VAT plus shipping costs
Subject to prior sale

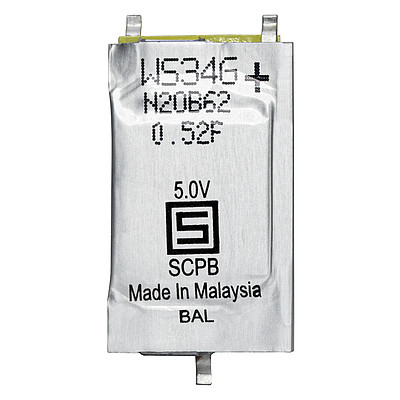

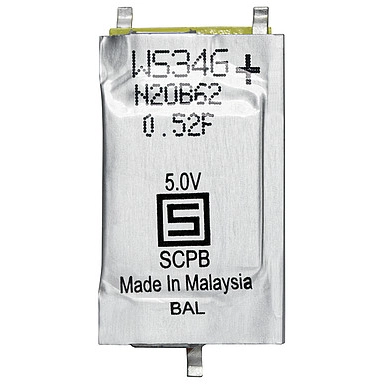

Prismatic Supercapacitor, 3-153-424, SCHURTER
Prismatic ultra-thin supercapacitor with a double-cell structure, featuring an ultra-compact design and high pulse power.
Features
- High temperature rating
- High power density
- Low ESR with high current handling
- Very low self discharge
Applications
- Sensors
- Small mobile devices
- Small power supplies
- Mobile energy harvesting
- Uninterruptible power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Rated voltage (DC) | 5 V | |
| Length | 20 mm | |
| Capacity | 90 mF | |
| min. operating temperature | -40 °C | |
| Width | 15 mm | |
| ESR (Equivalent Series Resistance) | 110 mΩ | |
| Height | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Tray with 200 pieces |
| Customs tariff number | 85322900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
