9865.1200 | SCHURTER

Round spacer bolt, external/internal thread, M6/M6, 51 mm, PA, 9865.1200

Order No.: 59P0538
EAN: 4099889428513
MPN:
9865.1200
Series: Transipillars

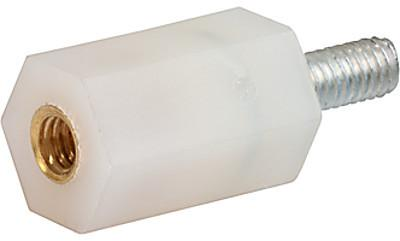

9865.1200 SCHURTER Spacer Bolts Image 1
9865.1200 SCHURTER Spacer Bolts Image 2
Image may differ
Unit Price (€ / pc.)
1.9516 € *
Available: 185 pcs.
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7969 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

Transipillars, 9865.1200, SCHURTER

Features

  • Versatile and rugged insulation mounting system
  • Metric threads and lenghts
  • Studs and inserts moulded into nylon pyllar
Technical specifications
Filter Property Value
Internal thread length 12.5 mm
External thread length 12.5 mm
Length 63.5 mm
Colour natural
Outer diameter 16 mm
Material PA
Thread size M6/M6
Design round
Product type spacer bolt
Version external/internal thread
Bolt length 51 mm
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
