3-150-067 | SCHURTER
Vandal-proof pushbutton switch, silver, illuminated (red/green/blue), 24 V, mounting Ø 22 mm, 22.1 mm, IP67/IP69K, 3-150-067
Order No.: 12G312
EAN: 4099891988661
MPN:
3-150-067
MSS-22-MONOA10C1-LI0RG024C1-P2OQB-S3NCWF-0000-K-01
Series: MSS
Unit Price (€ / pc.)
61.0351 € *
Available: 3 pcs.
Total Price:
61.04 € *
Price list
Quantity
Price per unit*
1 pcs.
61.0351 €
5 pcs.
56.5131 €
10 pcs.
53.3001 €
25 pcs.
50.2894 €
50 pcs.
47.8975 €
*incl. VAT plus shipping costs
Subject to prior sale

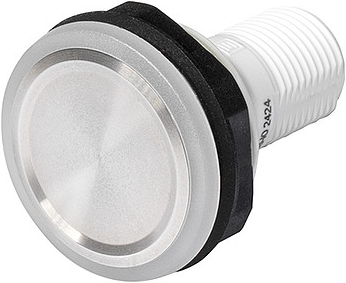

Pushbutton Switch, 3-150-067, SCHURTER
IO-Link Communication protocol. Resistive electronic switch (LA) / pushbutton (MO) without moving parts. Triggering of the switching mechanism by light pressure on the switching surface. Multicolor illumination.
Features
- Hygienic operation
- Trendy design
- Insensitive to water
- Side illumination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | M12-plug | |
| Latching switching function | groping | |
| Wall thickness | M | |
| Actuator colour | silver | |
| Breaking capacity | 24 V | |
| min. Geräteausschnitt | 22.1 mm | |
| Farbe der Beleuchtung | red/green/blue | |
| Installation diameter | 22 mm | |
| Printed | No | |
| Protection class | IP67/IP69K | |
| Design | round | |
| Vandal-proof | Yes | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1 piece |
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
