3-145-763 | SCHURTER

Vandal-proof pushbutton, 2 pole, silver, unlit , 3 A/250 VAC, mounting Ø 19 mm, 19.1 mm, IP66/IP67, 3-145-763

Order No.: 58P8152
MPN:
3-145-763
MSMII-19-MONX03A-D3-BE0-A-0000000000-S0NCA-S0NCNF-
Series: MSM II
3-145-763 SCHURTER Pushbutton Switches
Image may differ
Unit Price (€ / pc.)
12.6973 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
12.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.6973 €

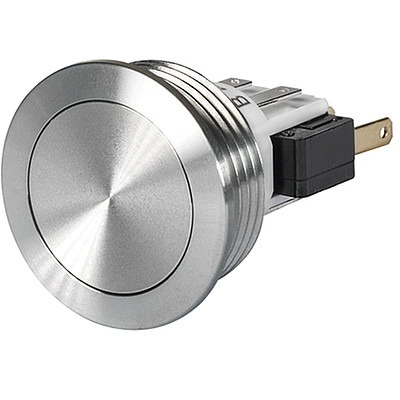

Metal switch, 3-145-763, SCHURTER

The 3-145-763 is a metal switch, non illuminated with torsion protection for easier positioning. Equipped with flat plug in terminals to permit fast connection.

Features

  • Attractive tactile feedback
  • High quality materials
  • Long life span
Technical specifications
Filter Property Value
contact surface silver-plated
Installation diameter 19 mm
Latching switching function groping
Design round
Actuator colour silver
Connection solder connection
min. Geräteausschnitt 19.1 mm
Protection class IP66/IP67
Vandal-proof Yes
Breaking capacity 3 A/250 VAC
Pin number 2 pole
Printed No
illuminated No
Logistics
Property Value
Original Packaging Carton with 10 pieces
Country of origin CH
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
