3-137-084 | SCHURTER

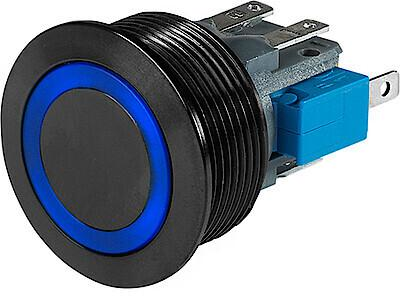

Pushbutton, 1 pole, silver, illuminated (white), 5 A/250 V, mounting Ø 30 mm, IP67, 3-137-084
Order No.: 12G1183
EAN: 4099891028411
MPN:
3-137-084
This item is no longer available.
As an alternative, we recommend the following item:

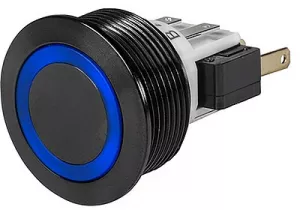

Vandal-proof pushbutton, 1 pole, black, illuminated (white), 5 A/125 VAC, mounting Ø 30 mm, 30.1 mm, IP66/IP67, 3-145-656
Order No.: 58P8051
Manufacturer: SCHURTER
per pc. 28.5481 € *
Pushbutton, 3-137-084, SCHURTER
Features
- Single color ring lighting
- With torsion protection for easier handling
- Equipped with flat plug in terminals to permit fast connection
- Protection class IP67 frontside
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Protection class | IP67 | |
| Farbe der Beleuchtung | white | |
| Vandal-proof | No | |
| Printed | No | |
| Connection | quick connection | |
| illuminated | Yes | |
| Breaking capacity | 5 A/250 V | |
| Installation diameter | 30 mm | |
| Design | round | |
| contact surface | silver-plated | |
| Actuator colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
