3-109-095 | SCHURTER

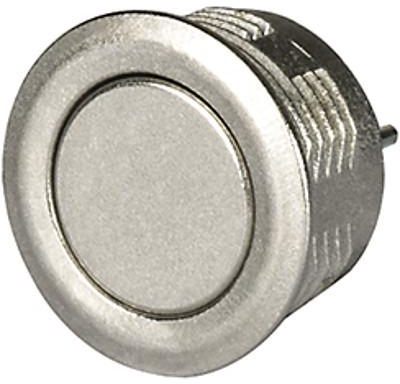

Vandal-proof pushbutton, 1 pole, unlit , 80 mA/48 VDC, mounting Ø 16.1 mm, IP67, 3-109-095
Unit Price (€ / pc.)
8.9488 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
8.95 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9488 €
10 pcs.
8.1396 €
50 pcs.
7.3304 €
100 pcs.
6.5926 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal Line Switch, 3-109-095, Schurter
Metal Switch Short Stroke
Features
- Very low mounting depth
- High ingress protection IP67
- Resistant against vandalism
- Long lifetime
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| illuminated | No | |
| Protection class | IP67 | |
| Latching switching function | groping | |
| Breaking capacity | 80 mA/48 VDC | |
| Installation diameter | 16.1 mm | |
| Vandal-proof | Yes | |
| Design | round | |
| Connection | solder pin | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 20 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
