3-108-968 | SCHURTER

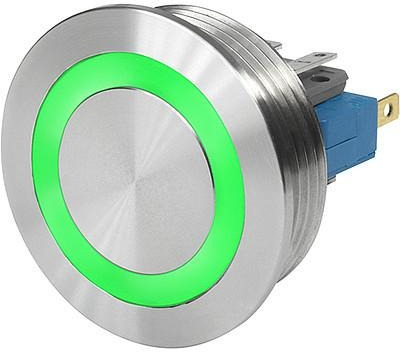

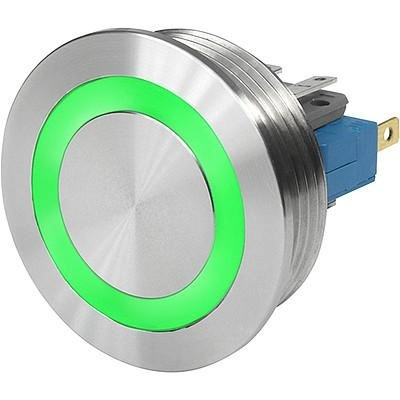

Pushbutton, 1 pole, silver, illuminated (green), 3 A/250 V, mounting Ø 30 mm, IP67, 3-108-968
Order No.: 12G2095
EAN: 4099891050115
MPN:
3-108-968
This item is no longer available.
As an alternative, we recommend the following item:
Pushbutton, 1 pole, silver, illuminated (green), 5 A/125 VAC, mounting Ø 30 mm, 30.1 mm, IP66/IP67, 3-145-619
Order No.: 58P8017
Manufacturer: SCHURTER
per pc. 34.7361 € *
Metal switch, 3-108-968, SCHURTER
Features
- High quality materials
- Long life span
- IP65 from front side to contact area
Applications
- For use in harsh environments
Technical specifications
| contact surface | silver-plated | |
| Printed | No | |
| Actuator colour | silver | |
| Breaking capacity | 3 A/250 V | |
| Latching switching function | groping | |
| Protection class | IP67 | |
| Installation diameter | 30 mm | |
| Pin number | 1 pole | |
| Vandal-proof | Yes | |
| Design | round | |
| illuminated | Yes | |
| Connection | quick connection | |
| Farbe der Beleuchtung | green |
Download
Logistics
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365011 |
| Country of origin | CH |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
