3-108-965 | SCHURTER

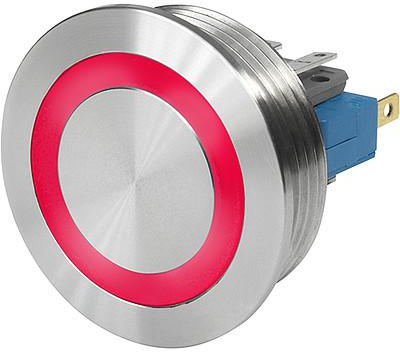

Vandal-proof pushbutton, 1 pole, silver, illuminated (red), 3 A/250 V, mounting Ø 30 mm, IP67, 3-108-965
Order No.: 12G2092
EAN: 4099891050085
MPN:
3-108-965
This item is no longer available.
As an alternative, we recommend the following item:
Vandal-proof pushbutton, 1 pole, silver, illuminated (red), 5 A/125 VAC, mounting Ø 30 mm, 30.1 mm, IP66/IP67, 3-145-608
Order No.: 58P8007
Manufacturer: SCHURTER
per pc. 31.2613 € *
Metal switch, 3-108-965, SCHURTER
Features
- High quality materials
- Long life span
- IP65 from front side to contact area
Applications
- For use in harsh environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | quick connection | |
| Latching switching function | groping | |
| Actuator colour | silver | |
| Pin number | 1 pole | |
| Breaking capacity | 3 A/250 V | |
| contact surface | silver-plated | |
| Farbe der Beleuchtung | red | |
| Installation diameter | 30 mm | |
| Printed | No | |
| Protection class | IP67 | |
| Design | round | |
| Vandal-proof | Yes | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
