3-101-429 | SCHURTER

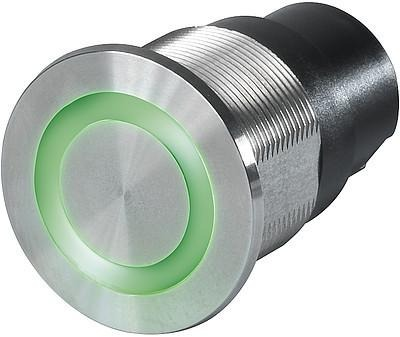

Pushbutton, 1 pole, silver, illuminated  (RGB), 0.1 A/60 V, mounting Ø 22.1 mm, IP67, 3-101-429

Order No.: 59P4610
EAN: 4099889199482
MPN:
3-101-429
Series: CPS
3-101-429 SCHURTER Pushbutton Switches
Image may differ
Unit Price (€ / pc.)
50.3608 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,007.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
50.3608 €

Capacitive switch, 3-101-429, SCHURTER

Capacitive touch sensor with multicolor illumination and protection against unintended switching.

Features

  • Protection against unintended switching
  • Wearless, no moving parts
  • Potential free output contacts
  • Laser lettering possible
  • Vandal resistant
  • Inputs protected against overvoltage
  • Galvanic separated outputs
  • Constant LED intensity
Technical specifications
Vandal-proof Yes
Printed No
Installation diameter 22.1 mm
Breaking capacity 0.1 A/60 V
Actuator colour silver
Farbe der Beleuchtung RGB
Pin number 1 pole
Design round
illuminated Yes
Connection wire connection
Protection class IP67
Latching switching function groping
Logistics
Country of origin CH
Customs tariff number 85365011
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
