1241.8551 | SCHURTER

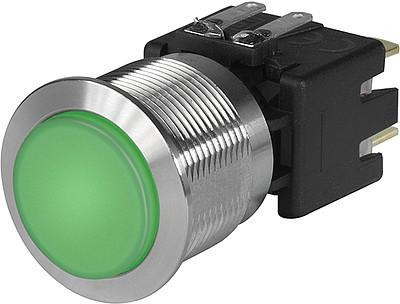

Vandal-proof pushbutton switch, 2 pole, clear, illuminated (green), 12 A/250 V, mounting Ø 19 mm, 19.1 mm, IP65, 1241.8551
Unit Price (€ / pc.)
51.2890 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
51.29 € *
Price list
Quantity
Price per unit*
1 pcs.
51.2890 €
5 pcs.
47.6952 €
10 pcs.
44.3632 €
25 pcs.
41.2573 €
*incl. VAT plus shipping costs
Subject to prior sale
Pressure switch, 1241.8551, SCHURTER
Metal switch with ceramic actuator.
Features
- Equipped with flat-pin plugs to permit fast connection
- With surface backlighting
- Used in harsh environments
- Highly durable ceramic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 12 A/250 V | |
| min. Geräteausschnitt | 19.1 mm | |
| Latching switching function | latching | |
| Pin number | 2 pole | |
| Installation diameter | 19 mm | |
| contact surface | silver-plated | |
| Printed | No | |
| Connection | quick connection | |
| Design | round | |
| Protection class | IP65 | |
| Farbe der Beleuchtung | green | |
| Vandal-proof | Yes | |
| Actuator colour | clear | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
