1241.6924.1124000 | SCHURTER

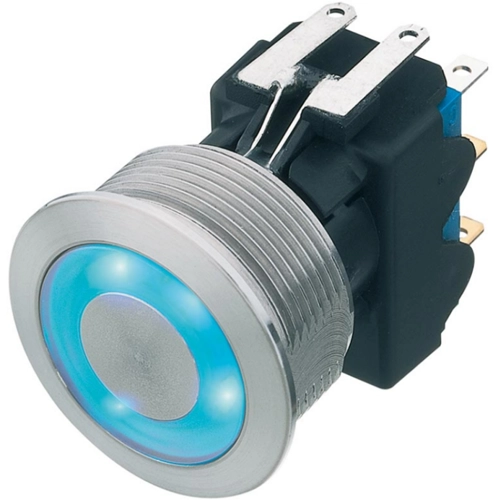

Vandal-proof pushbutton, 2 pole, silver, illuminated (blue), 5 A/125 V, mounting Ø 19.1 mm, IP67, 1241.6924.1124000

Order No.: 12G216

EAN: 4099889189056

MPN:

1241.6924.1124000

Image may differ

Key Specification:

Latching switching function groping

Pin number 2 pole

Actuator colour silver

Breaking capacity 5 A/125 V

illuminated Yes

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Vandal-proof pushbutton, 2 pole, silver, illuminated (blue), 3 A/250 VAC, mounting Ø 19 mm, 19.1 mm, IP66/IP67, 3-145-870

Order No.: 58P8159

Manufacturer: SCHURTER

per pc. 27.6556 € *

Go to product

*incl. VAT plus shipping costs

Description

Vandal resistant pushbuttons, with / without illumination, series MSM 19 DP and MSM 22 DP, type Schurter 1241.

Rugged switch with high degree of protection against vandalism. Two electrically isolated switching contacts; Switching action: optionally as NC, NO or changeover contact. Breaking capacity: max. 3.0 A/250 VAC, 5.0 A/125 VAC. Contact resistance (new condition): < 30 mohm. Insulation resistance: > 100 mohm. Bounce time: < 5.0 ms. Actuating force: 5.0 N. Actuating travel: 1.0 mm. Degree of protection: IP 67 (at the front). Protected against external mechanical stress (DIN EN 50102): IK 07. Housing and actuator material: stainless steel. Contacts: silver. Operating temperatures: –25 to +85 °C. Nut and O-ring are included.

With 19 mm mounting diameter, series MSM 19 DP, type 1241.

Technical attributes (type, illumination, illumination color): 1241.6924.1124000, illuminated ring, blue

Technical specifications

Filter	Property	Value
	Latching switching function	groping
	Pin number	2 pole
	Actuator colour	silver
	Breaking capacity	5 A/125 V
	illuminated	Yes
	Farbe der Beleuchtung	blue
	Printed	No
	Vandal-proof	Yes
	Connection	quick connection
	Design	round
	contact surface	silver-plated

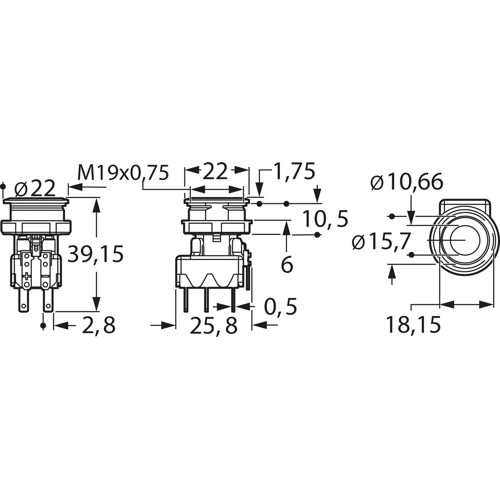

	Installation diameter	19.1 mm
	Protection class	IP67
