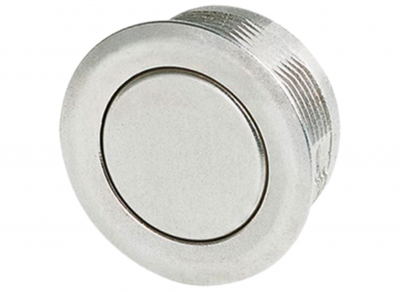

1241.2827 | SCHURTER
Vandal-proof pushbutton, 1 pole, silver, unlit , 0.125 A/48 V, mounting Ø 19 mm, IP67, 1241.2827
Unit Price (€ / pc.)
18.6949 € *
Standard delivery time from the manufacturer is: 9 Weeks
Metal switch short stroke, 1241.2827, SCHURTER
Features
- Housing zinc die-cast with nickel plating
- Stainless steel for housing and actuator for use in harsh environments outdoors
- Assembly by mounting with nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | No | |
| Protection class | IP67 | |
| Latching switching function | groping | |
| Breaking capacity | 0.125 A/48 V | |
| Installation diameter | 19 mm | |
| Vandal-proof | Yes | |
| Design | round | |
| Actuator colour | silver | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
