0041.9142.7107 | SCHURTER

Pushbutton, 2 pole, black, unlit , 0.2 A/60 V, IP40, 0041.9142.7107

Order No.: 12G2731
EAN: 4099889189995
MPN:
0041.9142.7107
Series: LDT

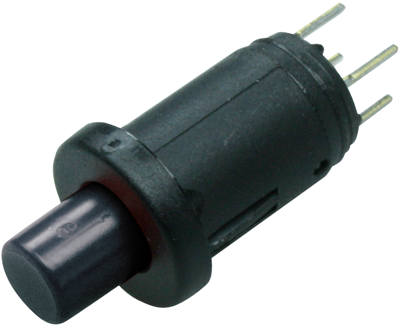

0041.9142.7107 SCHURTER Pushbutton Switches Image 1

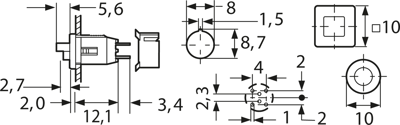

0041.9142.7107 SCHURTER Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.8556 € *
Available: 116 pcs.
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.3915 €
100 pcs.
2.9750 €
200 pcs.
2.8560 €
800 pcs.
2.6775 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbuttons, series LDT, type Schurter 0041.

For front panel/ PCB mounting. Compact with low mounting depth. Black bezel; Switching voltage: max. 60 VAC/50 VDC. Switching current: max. 200 mA. Contact resistance (new condition): < 20 mohm. Bounce time: 0.5 ms typical. Actuating force: approx. 1.5 N. Degree of protection: IP 40. Connection type: PCB terminals. Material: PES socket, PC button. Contacts: silver-plated CuZn. Ambient temperature: - 25 to +85 °C. Button dimensions: 5.1 diameter (round button). Note: the lock washer is essential for front-panel mounting. For versions with PCB terminals it must be ordered separately.

Double-pole NO, PCB terminals, type 0041.9142.

Technical attributes (type, bezel and button version, button color): 0041.9142.7107, round, black

Technical specifications
Filter Property Value
Latching switching function groping
Breaking capacity 0.2 A/60 V
Connection PCB connection
Protection class IP40
Design round
Pin number 2 pole
Vandal-proof No
contact surface silver-plated
illuminated No
Actuator colour black
Printed No
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 100 pieces
Customs tariff number 85365011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
