0041.8860.3317 | SCHURTER

Pressure switch

Order No.: 12G1862
EAN: 4099889188523
MPN:
0041.8860.3317
Series: LDS

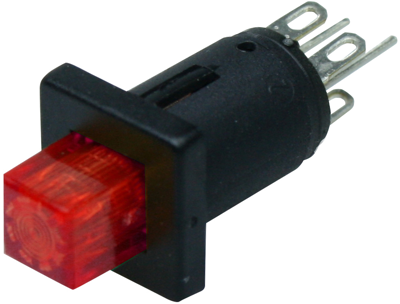

0041.8860.3317 SCHURTER Pushbutton Switches Image 1

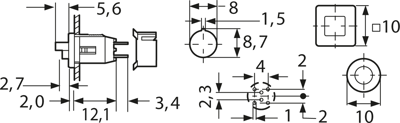

0041.8860.3317 SCHURTER Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
4.9742 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
994.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
4.9742 €

Illuminated pushbutton switches series LDS, type Schurter 0041.

For front panel and PCB mounting. Compact with low mounting depth. Good illumination. Black bezel; Switching voltage: max. 60 VAC/50 VDC. Switching current: max. 200 mA. Contact resistance (new condition): < 20 mohm. Bounce time: 0.5 ms typical. Actuating force: approx. 1.5 N. Degree of protection: IP 40. Connection type: solder lugs. Socket material: PES. Button: PC. Contacts: silver-plated copper zinc. Ambient temperatures: - 25 to +60 °C. Actuator dimensions: 5.1 x 5.1 mm. Note: the lock washer is essential for front-panel mounting and available on separate order for versions with PCB terminals.

Single-pole, NO + NC, with solder lugs, type 0041.8860.

Technical attributes (type, bezel and button version, button and LED color): 0041.8860.3317, square, red

Technical specifications
Filter Property Value
Latching switching function latching
Breaking capacity 0.2 A/60 V
Connection PCB connection
Protection class IP40
Vandal-proof No
contact surface silver-plated
Actuator colour red
Printed No
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 100 pieces
Customs tariff number 85365011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
