0041.8842.5307 | SCHURTER

Pushbutton, 1 pole, green, unlit , 0.2 A/60 V, IP40, 0041.8842.5307

Order No.: 12G2704
EAN: 4099889189902
MPN:
0041.8842.5307
Series: LDT

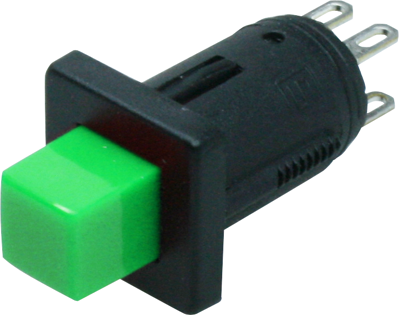

0041.8842.5307 SCHURTER Pushbutton Switches Image 1

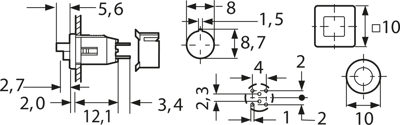

0041.8842.5307 SCHURTER Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.7961 €
50 pcs.
3.4629 €
100 pcs.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbuttons, series LDT, type Schurter 0041.

For front panel/ PCB mounting. Compact with low mounting depth. Black bezel; Switching voltage: max. 60 VAC/50 VDC. Switching current: max. 200 mA. Contact resistance (new condition): < 20 mohm. Bounce time: 0.5 ms typical. Actuating force: approx. 1.5 N. Degree of protection: IP 40. Connection type: solder lugs. Material: PES socket, PC button. Contacts: silver-plated CuZn. Ambient temperature: - 25 to +85 °C. Button dimensions: 5.1 x 5.1 mm (square button). Note: the lock washer is essential for front-panel mounting. For versions with PCB terminals it must be ordered separately.

Double-pole with NO contact and solder lugs, type 0041.8842.

Technical attributes (type, bezel and button version, button color): 0041.8842.5307, square, green

Technical specifications
Filter Property Value
Latching switching function groping
Breaking capacity 0.2 A/60 V
Connection PCB connection
Protection class IP40
Design square
Pin number 1 pole
Vandal-proof No
contact surface silver-plated
illuminated No
Actuator colour green
Printed No
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 100 pieces
Customs tariff number 85365011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
