0041.8842.3107 | SCHURTER

Pushbutton, 2 pole, red, unlit , 0.2 A/60 V, IP40, 0041.8842.3107

Order No.: 12G2711
EAN: 4099889189933
MPN:
0041.8842.3107
Series: LDT

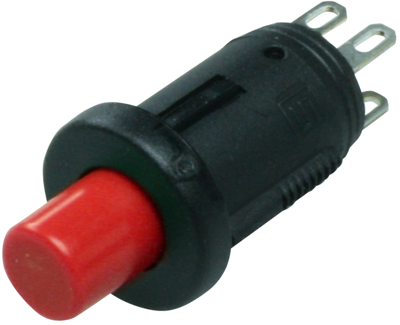

0041.8842.3107 SCHURTER Pushbutton Switches Image 1

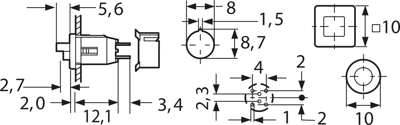

0041.8842.3107 SCHURTER Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
4.0222 € *
Available: 118 pcs.
Leadtime: 11 Weeks **
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.5462 €
100 pcs.
3.1178 €
200 pcs.
2.9869 €
800 pcs.
2.7846 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pushbuttons, series LDT, type Schurter 0041.

For front panel/ PCB mounting. Compact with low mounting depth. Black bezel; Switching voltage: max. 60 VAC/50 VDC. Switching current: max. 200 mA. Contact resistance (new condition): < 20 mohm. Bounce time: 0.5 ms typical. Actuating force: approx. 1.5 N. Degree of protection: IP 40. Connection type: solder lugs. Material: PES socket, PC button. Contacts: silver-plated CuZn. Ambient temperature: - 25 to +85 °C. Button dimensions: 5.1 diameter (round button). Note: the lock washer is essential for front-panel mounting. For versions with PCB terminals it must be ordered separately.

Double-pole with NO contact and solder lugs, type 0041.8842.

Technical attributes (type, bezel and button version, button color): 0041.8842.3107, round, red

Technical specifications
Vandal-proof No
Printed No
contact surface silver-plated
Breaking capacity 0.2 A/60 V
Actuator colour red
Pin number 2 pole
Design round
illuminated No
Connection PCB connection
Protection class IP40
Latching switching function groping
Logistics
Country of origin DE
Customs tariff number 85365011
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
