3-131-894 | SCHURTER

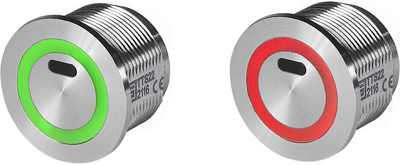

Piezo switch, On-Off, mounting Ø 26 mm, illuminated, red/green, stainless steel, IP67, 3-131-894
Unit Price (€ / pc.)
60.3330 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,206.66 € *
Price list
Quantity
Price per unit*
20 pcs.
60.3330 €
60 pcs.
56.2989 €
*incl. VAT plus shipping costs
Subject to prior sale
Touchless momentary push button, 3-131-894, Schurter
Touchless momentary push button, with protection against unintended switching.
Description
- Touchless momentary push button (NO)
- Protection against unintentional switch-on
- Precise triggering of the switching function
- Potential-free switch connections
- Laser inscription possible
- Vandal-proof
- 4 stranded wires, 26AWG, 0.128 mm²
Unique selling points
- Variable supply voltage
- Galvanically isolated outputs
- Wiping and cleaning the surface does not trigger a switching operation
Features
- Housing made of high-quality stainless steel
- With ring lighting
- Wear-free, as without mechanical stroke
Attractive design - Insensitive to water and rain
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | On-Off | |
| Installation diameter | 26 mm | |
| illuminated | Yes | |
| Farbe der Beleuchtung | red/green | |
| Connection | stranded wires | |
| Actuator | round | |
| Shell Material | stainless steel | |
| Color of body | natural | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 60 V | |
| Switching Voltage (AC) | 42 V | |
| switching current | 100 mA | |
| Lighting voltage | 5-28 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
