3-105-290 | SCHURTER
Piezo switch, mounting Ø 22 mm, illuminated, RGB, stainless steel, IP67, 3-105-290
Unit Price (€ / pc.)
197.5400 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
197.54 € *
Price list
Quantity
Price per unit*
1 pcs.
197.5400 €
5 pcs.
184.3667 €
*incl. VAT plus shipping costs
Subject to prior sale

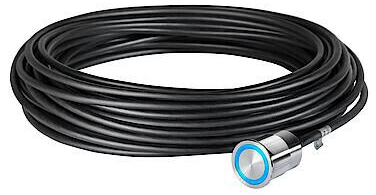

Piezo probe, 3-105-290, SCHURTER
Features
- Designed for IP67 applications
- Sealed housing, encapsulated PUR cable
- Switch with ring illumination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | stainless steel | |
| Switching Voltage (AC) | 42 V | |
| Connection | stranded wires | |
| Actuator | flat | |
| Degree of protection (IP) | IP67 | |
| Farbe der Beleuchtung | RGB | |
| Switching Voltage (DC) | 60 V | |
| Installation diameter | 22 mm | |
| illuminated | Yes | |
| switching current | 100 mA | |
| Lighting voltage | 5-28 VDC | |
| Color of body | silver |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1 piece |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
