1241.3666 | SCHURTER

Piezo switch, On-Off, mounting Ø 27 mm, illuminable, blue/green, stainless steel, IP67, 1241.3666

Order No.: 59P4170
EAN: 4099889200843
MPN:
1241.3666
Series: PSE NO 27

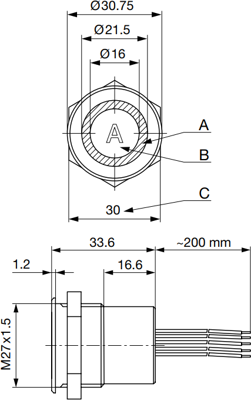

1241.3666 SCHURTER Piezo Switches Image 1

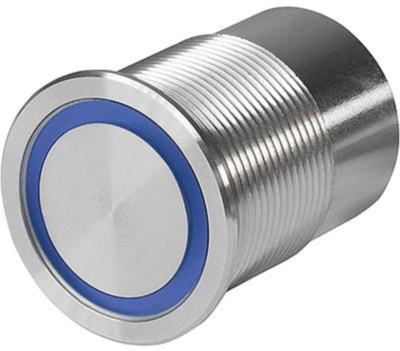

1241.3666 SCHURTER Piezo Switches Image 2
Image may differ
Unit Price (€ / pc.)
68.0561 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
1,361.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
68.0561 €

Piezo switch, 1241.3666, SCHURTER

Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.

Technical specifications
Latching switching function On-Off
Installation diameter 27 mm
can be illuminated Yes
Farbe der Beleuchtung blue/green
Connection stranded wires
Actuator round
Shell Material stainless steel
Color of body silver
Degree of protection (IP) IP67
Switching Voltage (DC) 60 V
Switching Voltage (AC) 42 V
switching current 100 mA
Lighting voltage 28 VDC
Logistics
Country of origin CH
Customs tariff number 85365011
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
