1241.3335 | SCHURTER

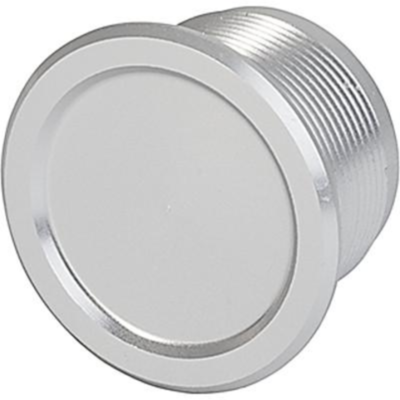

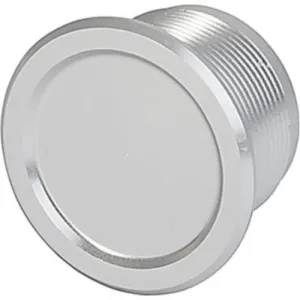

Piezo switch, On-Off, mounting Ø 22 mm, illuminated, red/green, aluminum, IP67, 1241.3335
Unit Price (€ / pc.)
65.3072 € *
Standard delivery time from the manufacturer is: 11 Weeks
Piezo switch, 1241.3335, SCHURTER
The piezo switch has a longer switching signal duration with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | On-Off | |
| Installation diameter | 22 mm | |
| illuminated | Yes | |
| Farbe der Beleuchtung | red/green | |
| Connection | plug-in connection | |
| Actuator | round | |
| Shell Material | aluminum | |
| Color of body | silver | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 48 V | |
| Switching Voltage (AC) | 32 V | |
| switching current | 100 mA | |
| Lighting voltage | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
