1241.3260 | SCHURTER

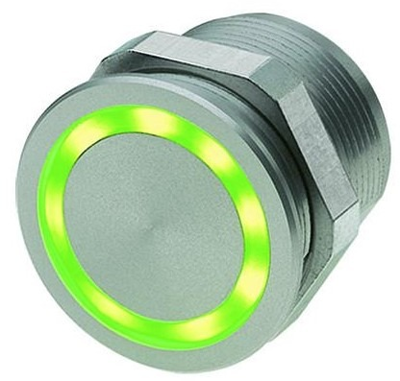

Piezo switch, On-Off, mounting Ø 22 mm, illuminable, green, stainless steel, IP67, 1241.3260

Order No.: 59P4150
EAN: 4099889200744
MPN:
1241.3260
Series: PSE NO 22
1241.3260 SCHURTER Piezo Switches Image 1
1241.3260 SCHURTER Piezo Switches Image 2
Image may differ
Unit Price (€ / pc.)
63.0224 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
1,260.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
63.0224 €

Piezo switch, 1241.3260, SCHURTER

Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.

Technical specifications
Switching Voltage (AC) 42 V
Actuator round
Installation diameter 22 mm
Degree of protection (IP) IP67
switching current 100 mA
Farbe der Beleuchtung green
Lighting voltage 24 VDC
Switching Voltage (DC) 60 V
Shell Material stainless steel
Latching switching function On-Off
can be illuminated Yes
Color of body silver
Logistics
Country of origin CH
Customs tariff number 85365011
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
