1241.3255 | SCHURTER

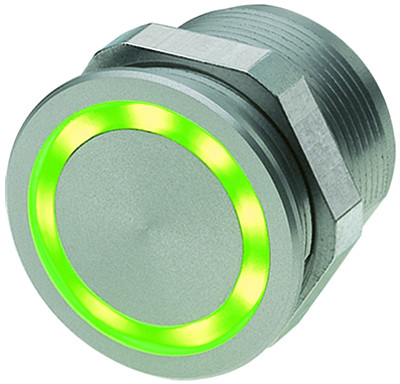

Piezo switch, On-Off, mounting Ø 22 mm, illuminated, green, stainless steel, IP67, 1241.3255
Unit Price (€ / pc.)
64.1410 € *
Standard delivery time from the manufacturer is: 11 Weeks
Piezo switch, 1241.3255, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 60 V | |
| Color of body | silver | |
| illuminated | Yes | |
| Latching switching function | On-Off | |
| Farbe der Beleuchtung | green | |
| switching current | 100 mA | |
| Shell Material | stainless steel | |
| Installation diameter | 22 mm | |
| Switching Voltage (AC) | 42 V | |
| Degree of protection (IP) | IP67 | |
| Actuator | round | |
| Lighting voltage | 12 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
