1241.3254 | SCHURTER
Piezo switch, On-Off, mounting Ø 22 mm, illuminated, green, stainless steel, IP67, 1241.3254
Unit Price (€ / pc.)
63.0224 € *
Standard delivery time from the manufacturer is: 11 Weeks

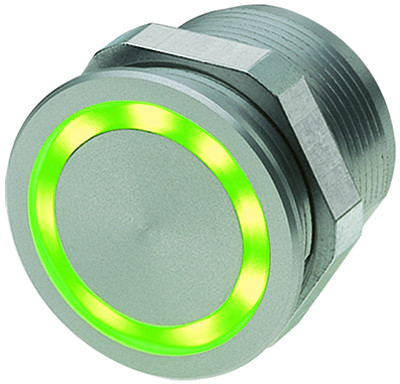

Piezo switch, 1241.3254, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Switching Voltage (DC) | 60 V | |
| Lighting voltage | 12 VDC | |
| Switching Voltage (AC) | 42 V | |
| Degree of protection (IP) | IP67 | |
| Color of body | silver | |
| Farbe der Beleuchtung | green | |
| Actuator | round | |
| Shell Material | stainless steel | |
| illuminated | Yes | |
| switching current | 100 mA | |
| Latching switching function | On-Off |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
