1241.3075 | SCHURTER
Piezo switch, On-Off, mounting Ø 22 mm, unlit, stainless steel, IP67, 1241.3075
Unit Price (€ / pc.)
27.8460 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
27.85 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8460 €
10 pcs.
25.8944 €
25 pcs.
24.0856 €
50 pcs.
22.1578 €
*incl. VAT plus shipping costs
Subject to prior sale

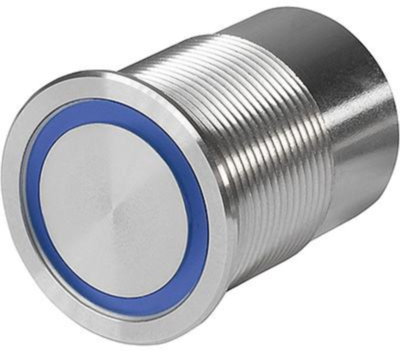

Piezo switch, 1241.3075, SCHURTER
Piezo switch with stainless steel housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.

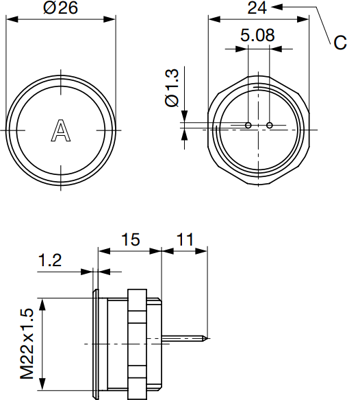

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 60 V | |
| Color of body | silver | |
| illuminated | No | |
| Latching switching function | On-Off | |
| switching current | 100 mA | |
| Shell Material | stainless steel | |
| Installation diameter | 22 mm | |
| Switching Voltage (AC) | 42 V | |
| Connection | PCB connection | |
| Degree of protection (IP) | IP67 | |
| Actuator | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
